600W Explosion Proof LED Flood Light ATEX Zone 1 Zone 2 Hazardous Area 78000lm IP66 Die-Cast Aluminum ADC12
Ürün ayrıntıları:
| Menşe yeri: | Guangdong, Çin |
| Marka adı: | Fins board, BOCAQ |
| Sertifika: | CE,ROHS,FCC,PSE,CCC,ATEX, ISO9001,BSCI |
| Model numarası: | EPFL-600W-Z1 |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 10 adet |
|---|---|
| Fiyat: | Pazarlık edilebilir |
| Ambalaj bilgileri: | Kutu paketi + kabarcık veya özelleştirilmiş |
| Teslim süresi: | 10-15 gün veya onaylayın |
| Ödeme koşulları: | T/T, Western Union |
| Yetenek temini: | 5000 adet/ay |
|
Detay Bilgi |
|||
| Güç: | 600W | Işık Akısı: | 78000lm |
|---|---|---|---|
| Etkinlik: | 130lm/W | Renk Sıcaklığı: | 5000K (Soğuk Beyaz) |
| Işın Açısı: | 120° | Giriş voltajı: | AC 100-277V 50/60Hz |
| Led çip: | Bridgelux SMD 3030 | IP Derecelendirmesi: | IP66 |
| Muhafaza malzemesi: | Döküm Alüminyum ADC12 | Mercek Malzemesi: | Temperli Cam 5mm |
| Çalışma Sıcaklığı: | -40°C ila +60°C | Sertifika: | ATEX II 2G Ex d IIC T6 Gb |
| Ömür: | ≥50.000 Saat L70 | Garanti: | 5 yıl |
| Vurgulamak: | 600W Explosion Proof Light,ATEX Zone 1 LED Floodlight,High Power Hazardous Lighting |
||
Ürün Açıklaması

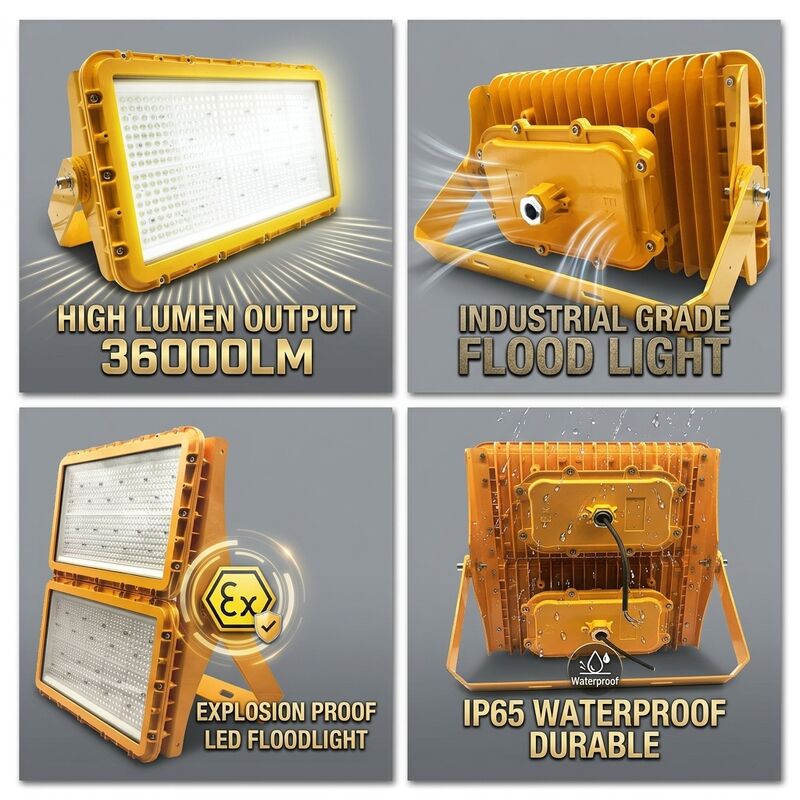

600W Explosion Proof LED Flood Light ATEX Zone 1 Zone 2 Hazardous Area 78000lm IP66 Die-Cast Aluminum ADC12
600W Explosion Proof LED Flood Light - ATEX Hazardous Area Lighting
The EPFL-600W is a 600W explosion proof LED flood light engineered for demanding industrial environments. This wide 120° floodlight provides exceptional illumination while maintaining the strictest safety standards for hazardous locations.
Key Features
- 600W High Power Output - 78000lm total luminous flux with 130lm/W efficacy, replacing traditional HID equivalents with significant energy savings
- ATEX Certified - ATEX II 2G Ex d IIC T6 Gb for hazardous gas and dust atmospheres
- Robust Die-Cast Aluminum ADC12 Housing - Die-Cast Aluminum ADC12 with corrosion-resistant coating for long-term durability
- IP66 Protection - Fully sealed against environmental ingress, suitable for the harshest industrial environments
- 5mm Tempered Glass Lens - High-transmittance safety glass with impact resistance rating
- Bridgelux SMD 3030 LEDs - Premium LED chips delivering stable 5000K (Cool White) light with excellent uniformity
- 120° Beam Angle - Optimized wide-angle light distribution for large-area coverage for industrial hazardous area applications
- Universal Voltage Input - AC 100-277V 50/60Hz compatible with global electrical systems
- Multiple Mounting Options - Adjustable bracket, pole mount, and ceiling mount configurations included
- 5-Year Warranty - Backed by ≥50,000 hours L70 lifespan testing
- Flagship High-Power Model - 78000lm output replaces traditional 2000W HID fixtures, delivering over 65% energy savings while providing superior illumination uniformity
Applications
Ideal for hazardous classified areas including:
- Large-scale refineries, petrochemical complexes, and heavy industrial plants
- Oil refineries and petrochemical processing plants
- Offshore drilling platforms and FPSO vessels
- Chemical storage warehouses and mixing facilities
- Gas compressor stations and LNG terminals
- Paint spray booths and solvent handling areas
Technical Specifications
| Model Number | EPFL-600W-Z1 |
|---|---|
| Power Consumption | 600W |
| Luminous Flux | 78000lm |
| Efficacy | 130lm/W |
| Color Temperature | 5000K (Cool White) |
| Beam Angle | 120° |
| Input Voltage | AC 100-277V 50/60Hz |
| LED Chip | Bridgelux SMD 3030 |
| IP Rating | IP66 |
| Housing Material | Die-Cast Aluminum ADC12 |
| Lens | Tempered Glass 5mm |
| Operating Temperature | -40°C to +60°C |
| Mounting | Adjustable Bracket / Pole Mount / Ceiling Mount |
| Certification | ATEX II 2G Ex d IIC T6 Gb |
| Lifespan | ≥50,000 Hours L70 |
| Warranty | 5 Years |
ECER delivers explosion proof LED flood lights that combine cutting-edge LED technology with rigorous safety engineering. Each unit undergoes 100% factory testing including pressure testing of the explosion-proof enclosure and photometric verification.
For bulk orders, OEM/ODM customization, or technical inquiries, please contact our sales team.
