50000H Long-Life 300W LED Explosion Proof Light 30 60 90 Beam LUMILEDS LM-80 ATEX IIb T6 IP65 Hazardous Area Fixture
Ürün ayrıntıları:
| Menşe yeri: | Çin |
| Marka adı: | RFEPL |
| Sertifika: | CE, ROHS, CCC, ATEX |
| Model numarası: | RFEPL8280-300W-MB |
Ödeme & teslimat koşulları:
| Min sipariş miktarı: | 1 Adet |
|---|---|
| Fiyat: | USD 309-599/Piece |
| Ambalaj bilgileri: | EPE Köpük İç Korumalı K=K İhracat Kartonu |
| Teslim süresi: | 15-25 iş günü |
| Ödeme koşulları: | T/T,L/C,Western Union |
| Yetenek temini: | Aylık 5000 Adet |
|
Detay Bilgi |
|||
| Güç: | 300W | Aydınlık etkinliği: | 100-120 lm/ağırlık |
|---|---|---|---|
| LED çip markası: | Lumileydler | LED Sertifikası: | LM-80 |
| Giriş Gerilimi: | AC100-277V | Güç faktörü: | ≥0,95 |
| Sertifikalar: | CE, ROHS, CCC, ATEX | Patlamaya Dayanıklılık Standardı: | Eski db mb IIb T6 |
| Giriş Koruması: | IP65 | Hava koruması: | WF2 |
| Aşırı gerilim koruması: | 6KV | Renksel Geriverim İndeksi: | CRI ≥80 |
| Muhafaza malzemesi: | Alüminyum + Temperli Cam | Işın açısı seçenekleri: | 30°/60°/90° (Seçilebilir) |
| Kablo Spesifikasyonu: | 1,0 mm² | Yüzey İşlemi: | Boya Sarı / Gri |
| Belirlenmiş Yaşam Süresi: | 50.000 Saat (L90) | Çalışma Sıcaklığı: | -40°C ila +60°C |
| Çalışma Nemi: | % 10 ila% 90 rh | ||
| Vurgulamak: | 300W LED explosion proof light,ATEX IIb hazardous area fixture,LUMILEDS LM-80 explosion proof lighting |
||
Ürün Açıklaması

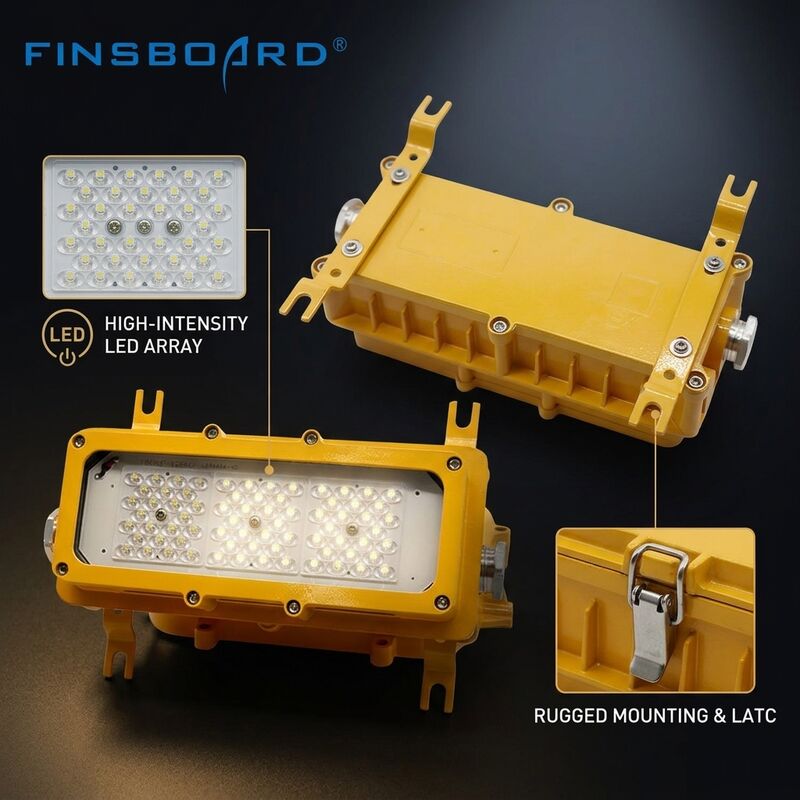

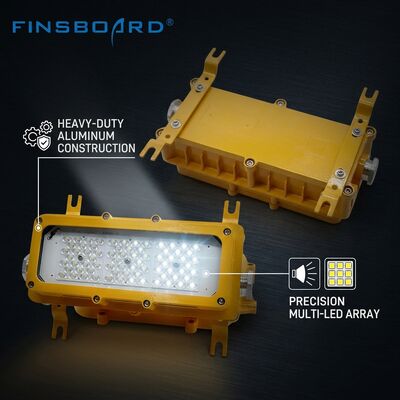

50000H Long-Life 300W LED Explosion Proof Light
The RFEPL8280-300W-MB redefines long-term value in hazardous area illumination by combining an extraordinary 50,000-hour L90 rated service life with a versatile multi-beam optical system. This advanced fixture adapts to diverse installation geometries while maintaining exceptional performance in demanding environments.
Key Advantages: LUMILEDS LM-80 certified LED chips operated below maximum rating, advanced passive thermal management, and three precisely engineered beam angle options (30°, 60°, 90°) for optimal coverage patterns.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model Number | RFEPL8280-300W-MB |
| Rated Power | 300W |
| Luminous Efficacy | 100-120 LM/W |
| LED Chip Brand | LUMILEDS (LM-80 Certified) |
| Lumen Maintenance | L90 @ 50,000 Hours (TM-21 Projected) |
| Input Voltage | AC100-277V, 50/60Hz |
| Power Factor | ≥0.95 |
| Color Rendering Index | CRI ≥80 |
| Beam Angle Options | 30° (Narrow) / 60° (Medium) / 90° (Wide) |
| Explosion Proof Standard | Ex db mb IIb T6 |
| Ingress Protection | IP65 |
| Housing Material | Die-Cast Aluminum + Tempered Glass |
| Operating Temperature | -40°C to +60°C |
| Certifications | CE, ROHS, CCC, ATEX |
Industrial Applications
This explosion-proof lighting solution is engineered for demanding hazardous area applications where reliability, longevity, and flexible beam control deliver maximum operational value.
- Refinery & Petrochemical Complexes: Standardized platform covering multiple area types with appropriate beam optics
- Mining Operations: 50,000-hour lifespan reduces costly production shutdowns for maintenance
- Pharmaceutical & Chemical Manufacturing: CRI 80+ color rendering for quality control inspection areas
- Food Processing Plants: Multi-beam flexibility adapts to changing equipment layouts
- Emergency Egress Lighting: Reliable illumination meeting life-safety regulatory requirements
Quality Assurance & Support
Each unit undergoes comprehensive quality control including LM-79 photometric testing and individual beam pattern verification. Products are packed in export-grade protective packaging with clear labeling.
Warranty: Comprehensive 3-year coverage for complete luminaire including LED modules, driver, and optical components.
Engineering Support: Complimentary lighting design services including photometric calculations and layout recommendations to meet OSHA, IEC, and local regulatory requirements.
